Creating Layouts in Sensei Imaging Software

This procedure is for customers using CS Imaging and the Sensei Imaging software.

The images in a series are arranged on the monitor in a layout. A layout is a set of rules to describe the types of images to display and where to place them on the screen.

Provided layouts are:

• Grid
• 4-Bitewing (IO)
• FMX-18 (IO)
• FMX-20 (IO)
• FMX-21 (IO)
• 2-Bitewing (IO)
• 4BW 2PA (IO)
• UPDNPA (IO)
• PedoFMX (IO)

To create a layout:

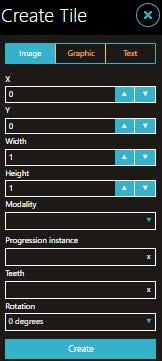

1. From the right toolbar, select Layouts > Edit > New Layout > New Empty Layout > New Tile. The Create Tile window is displayed.

2. Enter information in the window.
3. Click Create.

Note: You can also start from a template.

To import a layout file:

1. Select a JSON file.
2. Click Open > Import.

Caution: Placing images changes the tooth numbers associated with the images.

Caution: Placing images changes the series modality if an image of that series is placed into a tile with a
different modality.
