How to Export Images in Sensei Imaging

You have the ability to export 2D and 3D images from the Sensei Imaging software.

To access the export options:

1. Select the images in the Preview pane.

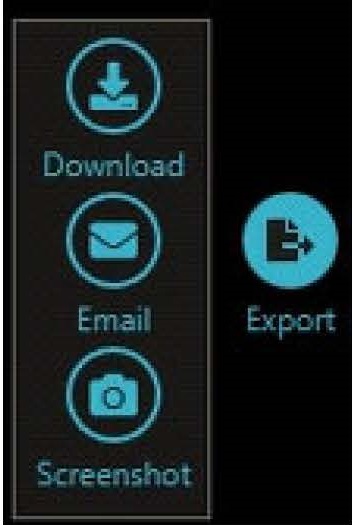

2. Click Export on the right toolbar. The following export options are displayed: Download, Email, and Screenshot.


To download the image:

1. Click Download. The Download window is displayed.
2. Under Archive Format, select ZIP (download to a jump drive) or ISO/CD (download to a CD/CVD).
3. Under Image Format, select JPEG, PNG, or DICOM.
4. Under Zip Password, you can enter a password to password-protect the download.
   Note: This is required for DICOM exports.
5. Click Download. A success message is displayed.

To email the image:

1. Click Email. The Email window is displayed.
2. Under Message, enter the following information:
   --To: Enter the recipient's email address.
   --Subject: Type the subject of the email.
   --Body: Type a message.
   --Signature: Add an email signature.
3. Under Files, select or enter the following information:
   --File Format: JPEG, PNG, or DICOM.
   --Email Link Expiration: Days before the download link expires; you can select between 1-7 days.
   --Zip Password: You can enter a password to password-protect the download.
4. Click Email.

To export a screenshot:

1. Click Screenshot. The Screenshot window is displayed.
2. Select or enter the following information:
   --Filename: Displays the series date.
   --Encoding: JPEG or PNG.
   --Scale %: Select the percent of scale.
   Note: Larger scale sizes increase the download time.
   --Options: Select any of the following options: Show patient name, Show tooth numbers, and Include labels
3. Click Screenshot.
