How to Install XVCapture

This XVCapture installation guide is suitable for both workstations and servers.

IMPORTANT: For a successful installation, the following two components are required:

• Apteryx.ini file
• Access to your *.senseiimaging.com URL

The Apteryx.ini file is a distinct file that facilitates token data communication with Apteryx. If you've previously set up XVCapture on a workstation, you can usually find this file at C:\XVCapture. It can be transferred from an existing workstation to a new one for installation purposes.

Your *.senseiimaging.com URL is generally named in a way that reflects your dental practice.
For instance: smiledental.senseiimaging.com.

If you're missing any of the above, please Click here to contact our support team, and they'll be happy to help.



Instructions

1. Go to your private *.senseiimaging.com URL.

2. Login using your username and password.

3. Click the Yellow Circle in the top-right corner.

Note: If you have a green circle, skip to step 12

4. Click Install the Chrome Extension.

5. Click Add to Chrome.

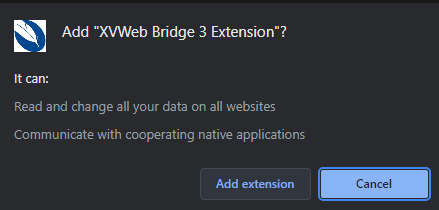

6. Click Add Extension.

7. Click the Yellow circle in the top-right corner again.

8. Click Download and install XVWebBridge components.

9. Open the downloaded executable named XVWebInstaller.exe

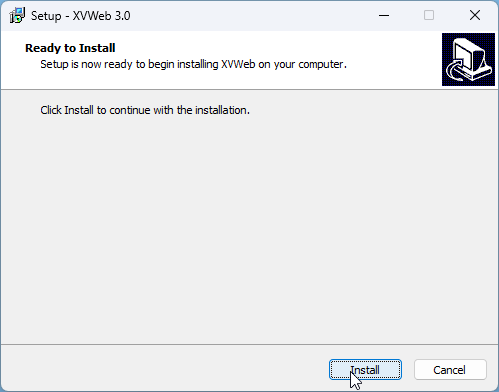

10. Click Install.

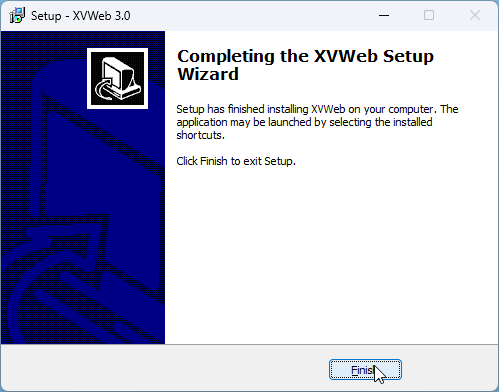

11. Click Finish.

12. Refresh the Sensei Imaging URL, and you should now have a green circle

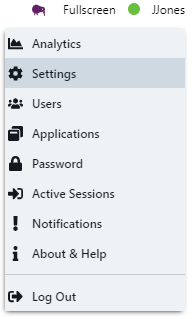

13. Click your profile in the top-right corner.

14. Select Settings.

15. Click Download certificates.

16. Refresh the page.

17. Click your profile in the top-right corner.

18. Select Notifications.

19. Click Download.

20. Extract the folder.

21. Create a folder on the root of the C:\ Drive called senseiimaging.

22. Copy & Paste the files from the certificates folder into C:\senseiimaging.

23. Copy & Paste the Apteryx.ini file into C:\senseiimaging.

24. Click here to download XVCapture.

25. Extract the folder.

26. Copy & Paste the XVCapture folder to the root of C:\

27. Copy & Paste the entire contents from C:\senseiimaging into C:\XVCapture

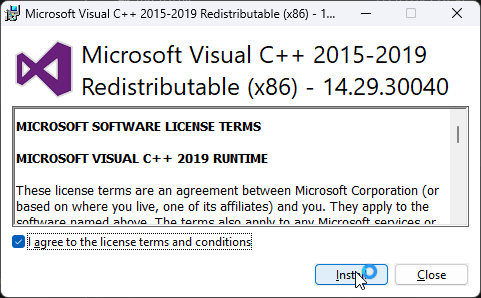

28. Launch C:\XVCapture\VC_redist.x86.exe as an Administrator and follow the prompts to install Visual C++.

29. Tick I agree to the license terms and conditions.

30. Click Install.

31. Launch C:\XVCapture\XVCapture.exe as an Administrator.

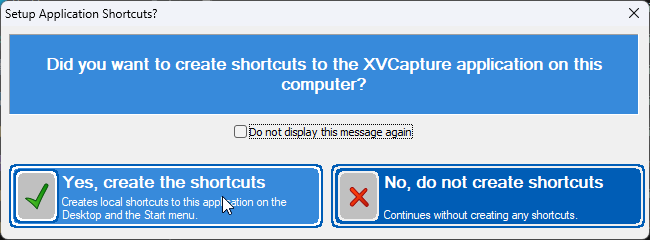

32. Select Yes, create the shortcuts if prompted.

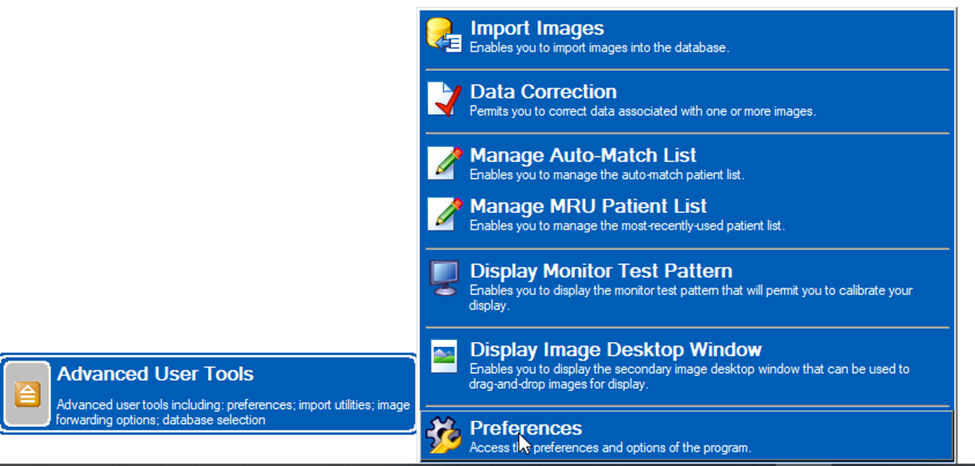

33. Click Advanced User Tools.

34. Select Preferences.



35. Log into the application as an admin using the password AKRON

36. Navigate to the DICOM tab.

37. Select Configure DICOM Servers.

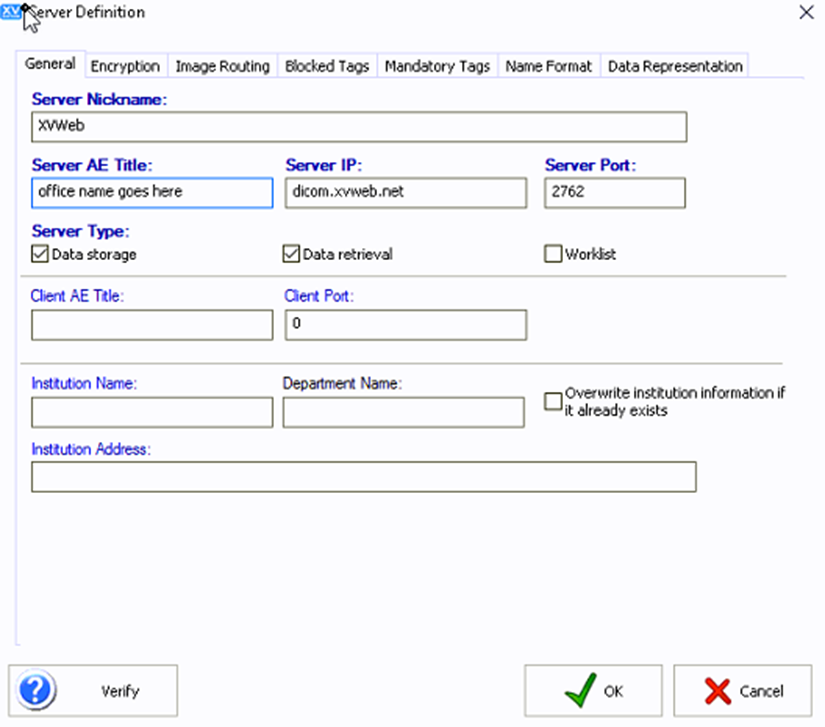

38. The configuration should be similar to below containing the AE title prefix belonging to the practice.

39. Click Verify and ensure the connection is successful.

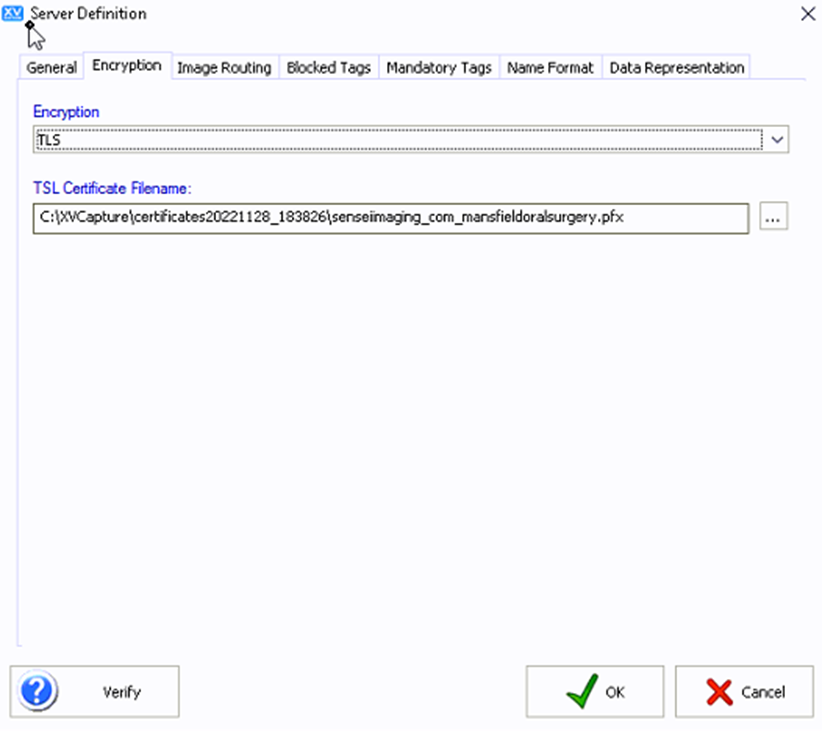

40. Select the Encryption tab.

41. Ensure the certificate filename points to the correct file in C:\XVCapture.

42. Click Verify to ensure the connection is successful.

43. Click OK.

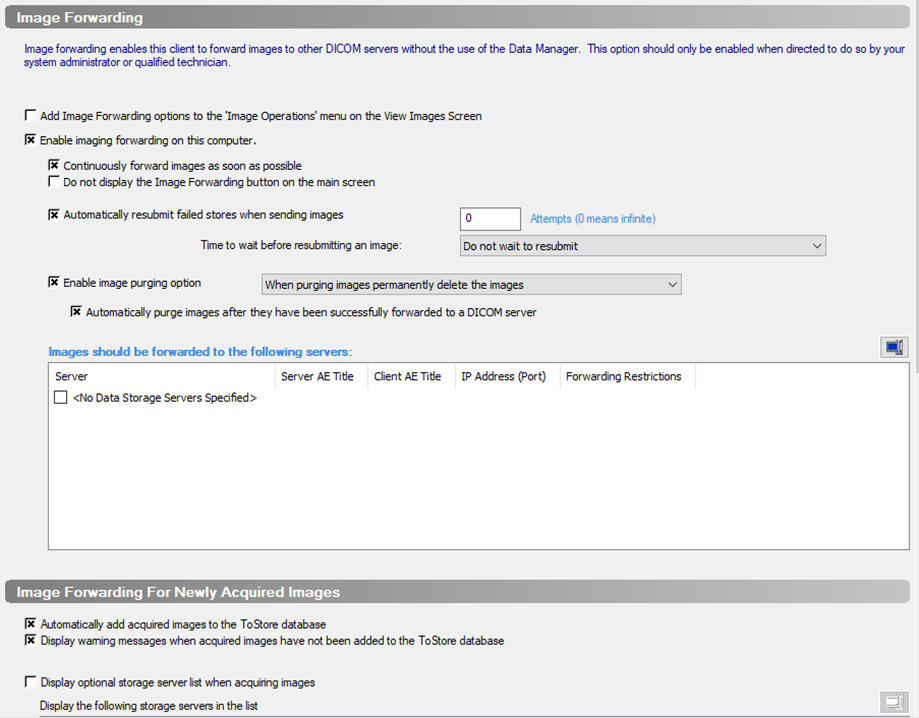

44. Choose the Image Forwarding tab and ensure that the Image Forwarding option for this device is checked. The XVWeb database should be chosen as the destination for the image.

Note: In the provided example, there isn't an available XVWeb database to select.

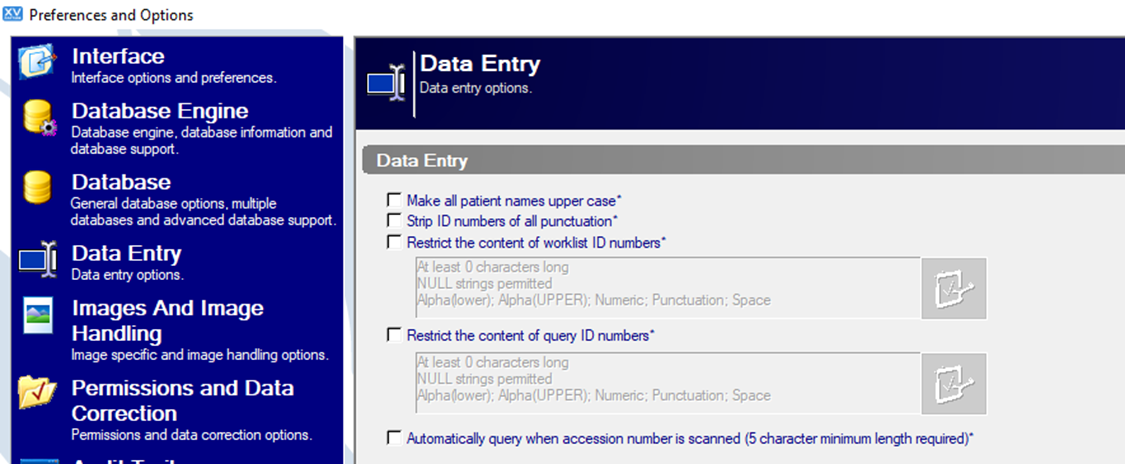

45. Go to the Data Entry tab.

46. Ensure that the following boxes are unticked.

47. Restart the computer.

XVCapture installation is complete
